Plumbing Pipe 4 cage chandelier

AUD $1,240.00

Weight: 8kg

Pendant Custom length to ceiling (+AUD $0.05) *

Specify a precise overall length as a custom fit in mm. Minimum 600mm.

Custom Finish *

Choose here an alternate finish for the plumbing pipe components

Hardware Color *

Choose here a color for the lampholders to either match or contrast

Cages color *

Aluminium Reflectors

Choose to add 4 polished aluminium reflectors into the cages. These will then be fully adjustable in direction.

Choose Country Voltage and hardware option

Choose here to make 240 Volt or 120 Volt FOR USA AND CANADA REQUIREMENTS. This does not provide a UL Listed product but provides UL compatible hardware.

Warranty: 1 Year

Download PDF

Product Description

Plumbing Pipe 4 cage chandelier. This heavy weight Plumbing Pipe 4 cage chandelier can be used to light up a dining table or be used as a ceiling light feature in a foyer or entrance. It comes with 8 lamp holders in a vertical solid brass cage. It is made from standard plumbing pipe using threaded fittings. Secures to the ceiling via main pipe and cast flange which is the wiring point. The main body of the light fitting height is 470mm but is configurable to any total pendant drop, with a minimum of 600mm. This would put the globes 100mm from the ceiling however.

Any 290mm long E27 tube globe can be used in this fitting and we have it photographed here with 290mm vintage spiral filament tubes. Also available as LED version.

Available in Galvanised, Rusted, brass painted or Raw black steel. The rusted finish is sealed with a coating of “Penatrol” providing a smooth darker rustic finish. Pictured here currently in Galvanised pipe with nickel plated cages. This also has an option to include up-cycled polished aluminium reflectors from older ship light components.

This is a unique design made by hand to order in our workshop. Precision components combined with exacting assembly make this a robust light fitting suited to commercial applications.

Globes are not included and can be ordered separately

Where this fitting is required to be 120 Volt we supply with the 4″ J-box mount in the same material and color of the pipe hardware. UL listed components are used but the light fitting itself is not UL listed.


Vintage industrial design.
Steel and cast plumbing pipe construction.
Solid brass lamp holders.
Solid brass cages
Mounting flange compatible with 4 inch J- boxes.
Range of surface finishes.
Recommended bulbs are listed below.

Finish options:

Plumbing pipe components available in standard Galvanised iron, Rusted iron, Flat black painted finish, and Raw steel, supplied as linseed oil rubbed.
Brass lamp holders available in New Brass, Antique Brass, Antique Bronze and Nickel.

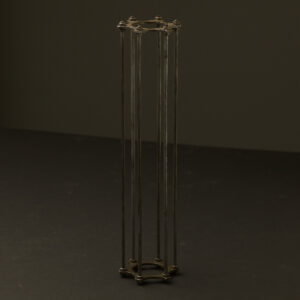

Brass cages are available as new brass, bronze plated or nickel plated.

Download Augmented Reality 3D App

Click on the images below when viewing with a mobile or tablet and follow the instructions to place this 3D model in your space.

Plumbing pipe 4 cage chandelier in flat black finish. Place over floor
Plumbing pipe 4 cage chandelier in galvanised finish. Place over floor



Indoor use only.
E27 240VAC (eg. AUS, UK, NZ) or E26 120VAC (eg. US, CA).
Integral earth wire.
Secures to the ceiling via cast flanges.
Globes 25W Max.
Globes not included.

Height: Standard – 470mm or configurable by customer (Minimum 600mm).
Width: 380mm
