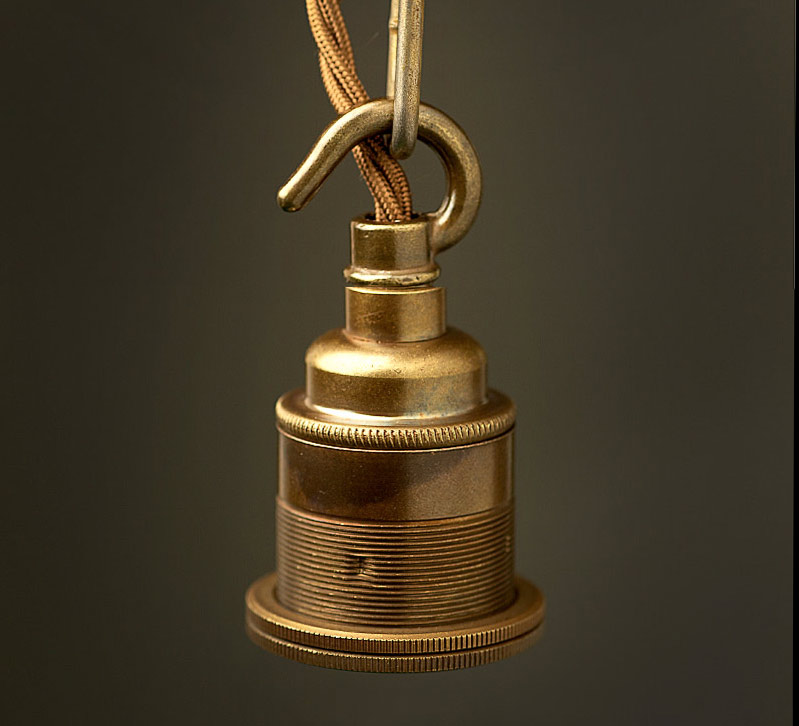

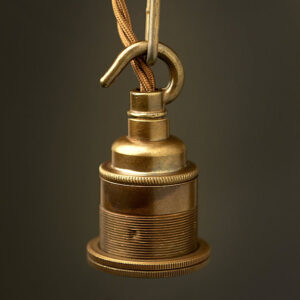

Antique Brass Chain Hook Lamp holder Edison E27 fitting

AUD $45.50

Specifications

  • Input Voltage Max: 250VAC
  • Rated Current Max: 4A
  • Earth Requirement: Yes
  • Temperature Classification: T170
  • Material: Brass & ceramic
  • Base Type: Edison Screw, ES, E27
  • Entry Type: Brass Hook
  • Maximum Static Load: 8kgs
  • Shade Nut: Yes, one as standard.
  • Recommended Shade Hole Dia: 38mm
  • Height: 87mm
  • Diameter: 48mm
  • Certifications: RCM SGS-160552-EA, CE
Shipping Weight: .15kg

Shade Nuts *

Warranty: 1 Year

Download PDF

Product Description

Antique Brass Chain Hook Lamp holder Edison E27 fitting finished in antique brass, with a solid brass hook suitable for steel cable or chain. The hook is designed carry the load of heavier lamp shades or for purely decorative purposes. Internally this antique brass chain hook lamp holder Edison E27 fitting features a quality ceramic insert and brass screw terminals. This precision made solid brass E27 lamp holder features a high quality ceramic insert with brass screw terminals.

Shade nuts are employed to hold a gallery or in some instances, a shade directly to the lamp holder. Where shade nuts are required to connect a galley or light shade, select two from the dropdown available. Our smooth variations of the brass E27 lamp holders do not have this feature.

This lamp holder must be earthed and uses an anti rotation mechanism to ensure that the body can not be open when changing the bulb. Before applying power after wiring and reassembly, test the anti-rotation feature. If it fails to lock, remove the lamp holder body and bulb receptacle and gently open the anti-rotation mechanism over to a more aggressive position.

Our brass lampholders are compliant to AS/NZ standards and hold a Certificate of Approval (RCM) and CE for European markets.

Disassembly instructions

Locate the active terminal and its anti-rotation mechanism. Using a suitable screwdriver, gently open the anti-rotation mechanism towards the center of the lamp holder so as to clear it from the locking teeth on the bulb receptacle. This will now allow the lamp holder body to be unscrewed from the lamp holder top. Once disassembled, gently prise the anti-rotation tab back into position using a pair of small pliers so that it engages with the locking teeth on the bulb receptacle. We have also provided a downloadable visual guide to disassembly in the documents tab below.

Note: Chain and cable not included.
